Descriere

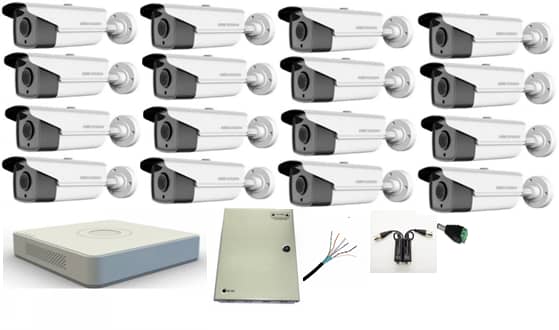

Kitul Contine:

16 CAMERE exterior Hikvision 2 megapixel TurboHd model DS-2CE16D0T-IT3F:

• Camera 2 Megapixel 4 IN 1 camera video FullHD 1080P, TurboHD
• rezolutie 1920×1080 pixeli 25 fps AHD,ANALOG,CVI,TVI
• iluminator IR EXIR automat 40 metri cu optimizare IRCut Day&Night True Day/Night,
• Smart IR obiectiv fix 3.6 mm 90 grade deschidere
• utilizare interior/exterior grad de protectie la intemperii IP66
• cablare cu cablu coaxial pana la 500 metri si conectori BNC
• temperaturi de utilizare -40C pana la +60C;
• dimensiuni 86.22?82.05?220.13mm
• alimentare 12Vcc/1A

1 DVR HIKVISION TurboHd:

• DVR Turbo HDTVI,AHD,ANALOG cu 16 canale 720P?
• recomandat cu camere HDTVI (turboHD)
• compatibil si cu camere analogice 960H,1080P sau camere AHD rezolutii 960H,1080 sau 1 Megapixel
• rezolutie inregistrare 1MP, 1280×720 pixeli la 25 fps
• suporta 1 HDD SATA de maxim 6TB
• monitorizare prin internet de pe telefon, tableta, PC
• inregistrare la detectie miscare
• avertizare prin email
• 1 iesire VGA,1 iesire HDMI, 2 USB
• 1 intrare RCA audio, 1 iesire RCA audio
• DDNS, limbi multiple
• functie cloud
• aplicatie monitorizare CMS si mobil?
• temperaturi de utilizare 0C pana la +50C
• carcasa plastic
• accesorii: mouse, alimentator 12V-2A, conectori, manual

1 Sursa 12V 30A 18 iesiri in cutie metalica

• Sursa alimentare comutatie cu 18 iesiri partajate in cutie metalica
• Sursa de tensiune neintreruptibila
• Protectie la suprasarcina, supratensiune, scurt-circuit, antisabotaj;
• Input: 90V-240V 50-60Hz- Output Voltage: 12V DC
• – Output Current: 30A- Output Wattage: 360W
• – Output Channel: 18 Channel- Output Max Current-Limited: 2.A
• – Voltage Tolerance: ?5.0%- Output Ripple wave: (mVp-p): <1%
• – Output Linear modulate: ?0.5%max- Output Temperature coefficient:?0.02%/?
• – Override protection: 115%-200%vA,automatic recovery- Insulation strength: 3000VAC/5mA,1MIN
• – Insulation resistance: Input-Output?100M?,Input-Case?100M? DC 500V
• -Voltage Tolerance: ?5.0% – Output Ripple wave: (mVp-p): <1% – Output Linear modulate: ?0.5%max
• – Output Temperature coefficient: ?0.02%/? –
• – Automatic recovery – Insulation strength: 3000VAC/5mA,1MIN
• – Working temperature: -20?-+70?,10%-90%RH

Cablu FTP cupru solid CAT 6E rola 305 m 0.45mm

16?Set videobalun

• set balun video pasiv folosit in retele CCTV cu transmisie prin cablu UTP
• Videobalun protectie anti interferente si descarcari electrice
• Video balun pasiv HDCVI/HDTVI/AHD (pret/set 2 buc.)?
• Design carcasa ABS cu sistem de organizare?
• Video balun HD pentru transmisie semnal video HD, 720P/1080P prin cablu UTP cat5e/6e;
• Conector Conector BNC – pin central cupru 100%.?
• Terminal cu conexiune rapida
• Distanta transmisie: 600M Color, 1000M Alb Negru
• Protectie:ESD, descarcari electrice, anti-interferente,antiseismice si caderi de tensiune.
• Sunt recomandate sistemelor de supraveghere profesionale.
• Video balun pasiv HDCVI/HDTVI/AHD antiinterferente (pret/set 2 buc.) model nou
• Design carcasa ABS cu sistem de organizare?
• Video balun HD pentru transmisie semnal video full HD, 720P/1080P prin cablu UTP cat5e/6e;
• Conector Conector BNC – pin central cupru 100%.?
• Terminal cu conexiune rapida
• Distanta transmisie:
• HDCVI: 300m(720P); 150m(1080P);
• AHD: 300m(720P/960P); 300m(1080P);
• HDTVI: 200m(1080P); 300m(720P);
• Protectie:ESD, descarcari electrice, anti-interferente, 75 Ohms/- UTP or FTP
• Passive HDCVI Transceiver single channel
• Compatible with AHD/CVI/TVI?
• signal Transmissio signal: 720P/1080P/
• Cable: CAT 5/5e/6 No power required/Built-in surge & Transient protection
• Super interference rejection
• Specifications: Physical properties: – Dismension: 13.7mm*11.6mm*3mm –
• Material: ABS(Shell)/- Color: Black/- N.W.: 60g
• Stability: MTBF: >10000H Environmental:
• Operating Temperature: -20-55?

16 Mufe alimentare tata

• Conector de alimentare (TATA) 12V cu surub
• DC Jack male to 2 pin (cat5) connector
• Size: 5.5mm*2.1mmDC Jack male to 2 pin (cat5) connector-
• Power: 12V- Aplicatii:CCTV camera, Power, Led etc
• Durabilitate peste 1000 times
• Material: Plastic si Cupru

-Raport pret / calitate excelent?

-Soft vizualizare telefon mobil inclus

-Va mai trebuie doar hard pentru inregistrari.
