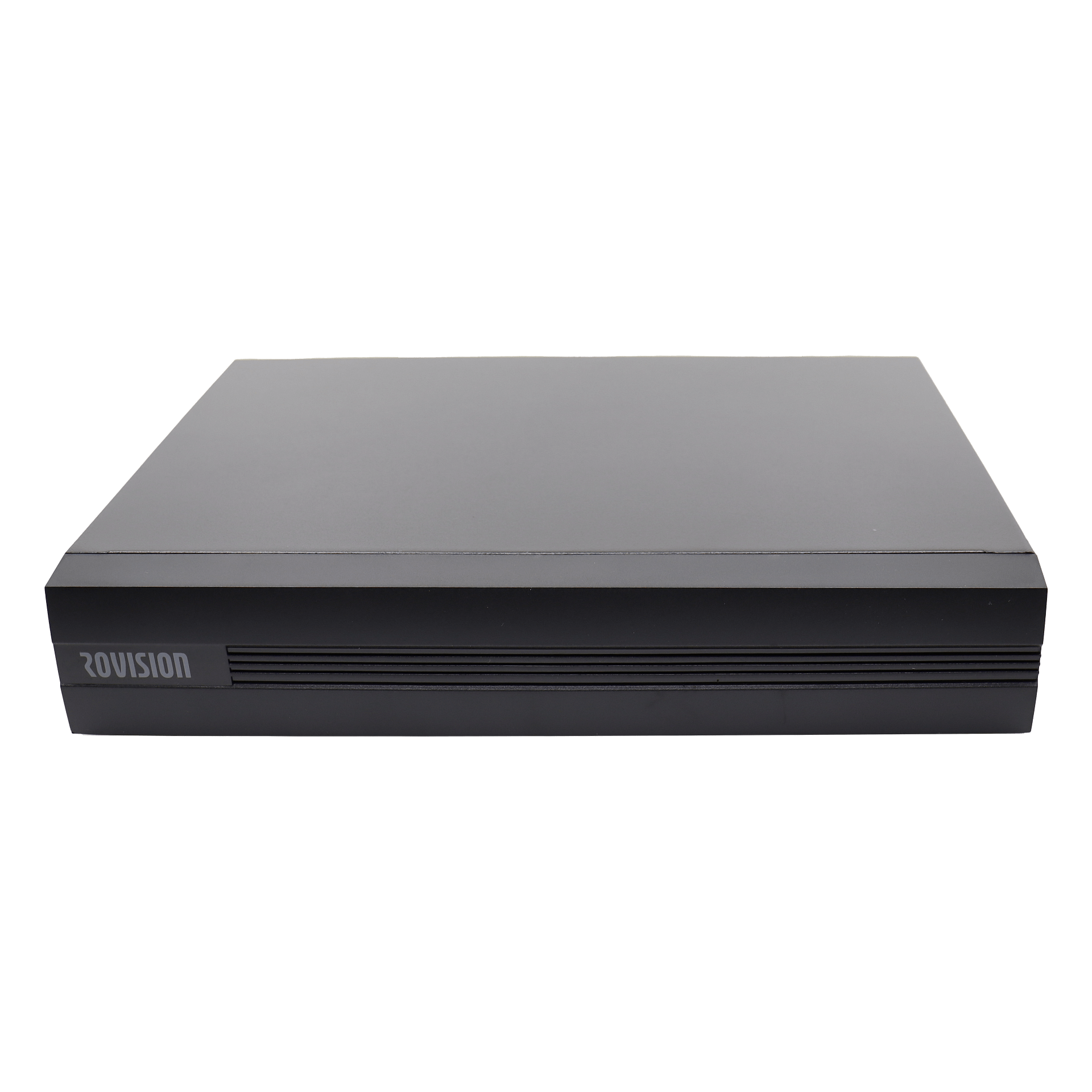

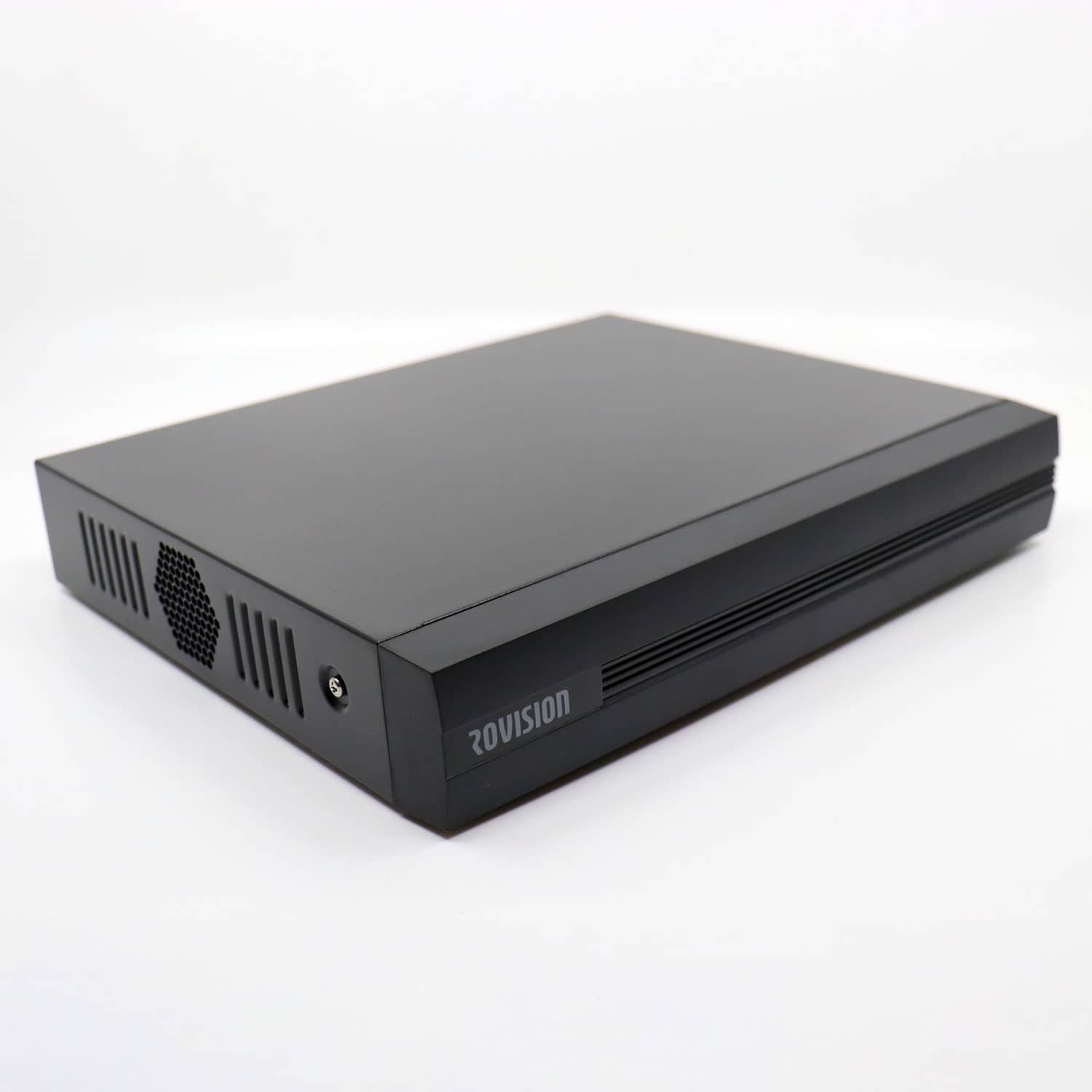

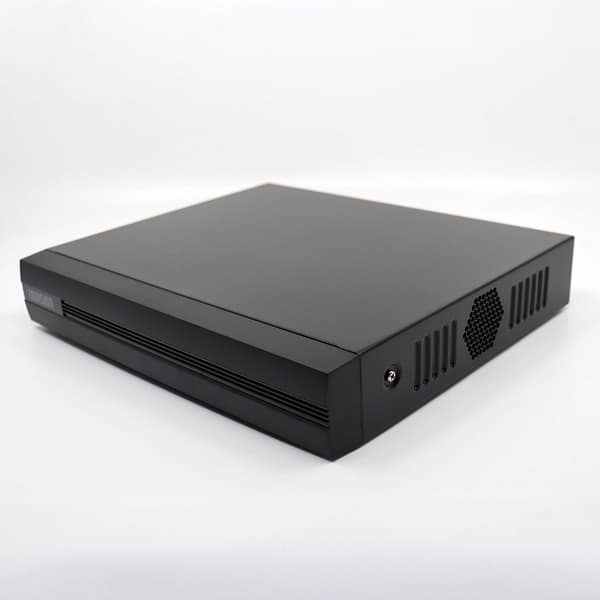

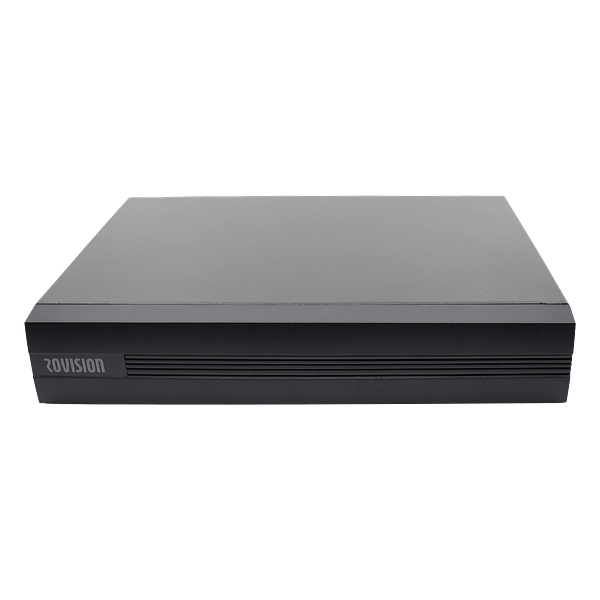

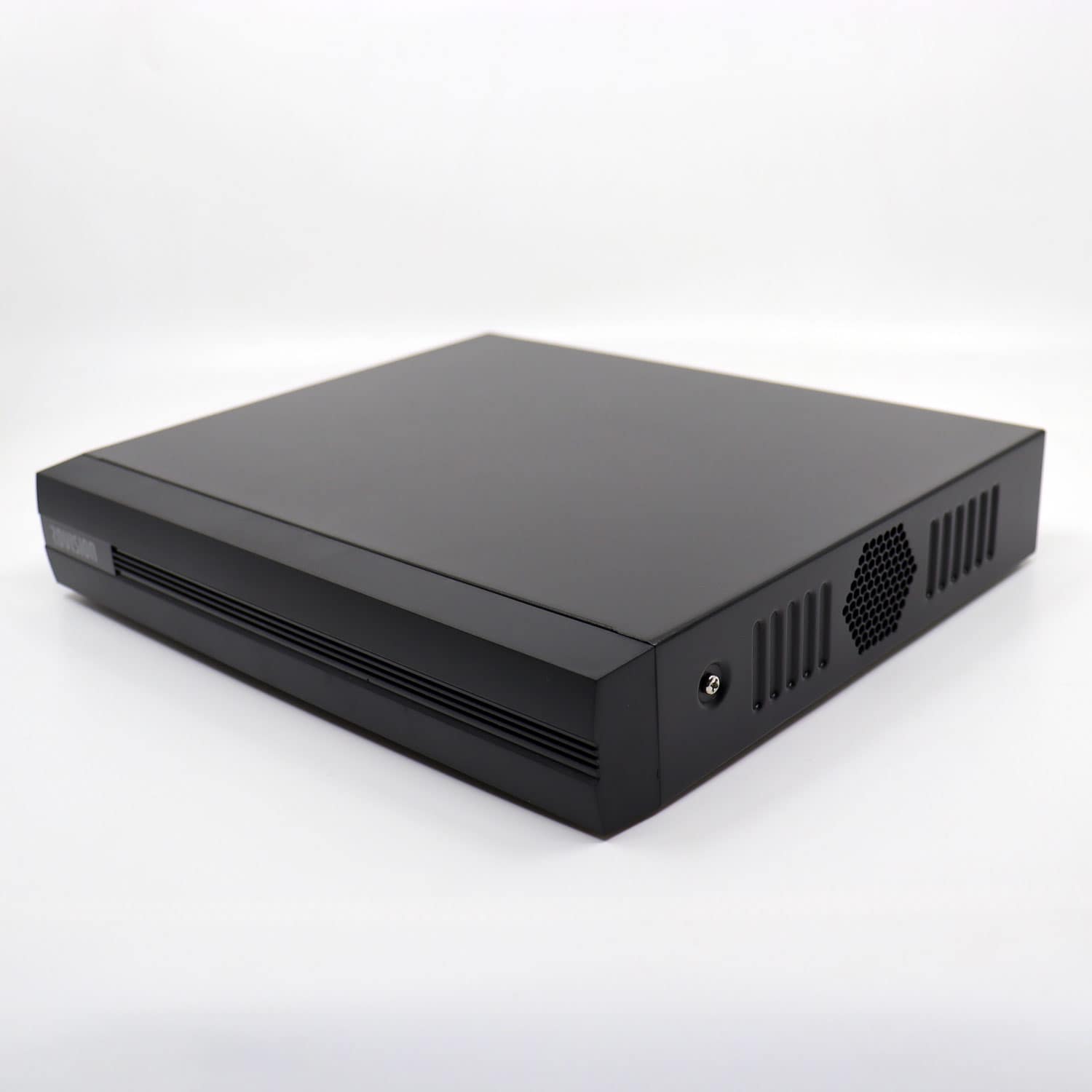

DVR Pentabrid 16 canale ROVISION ROV1B16-I inteligenta artificiala, protectie perimetru SMD plus

368,82 lei exclusiv TVA, 438,90 lei inclusiv TVA

Stoc epuizat

SKU: ROV1B16-I Categorie:


[vc_row][vc_column][vc_column_text]ROV1B16 este un DVR Pentabrid? cu functia SMD PLUS stand alone cu 16 canale de inregistrare de la Rovision. Acesta? suporta tehnologiile?AHD, HD-CVI, HD-TVI, IP si Analog (CVBS)?pentru a se integra usor cu cele mai populare formate de inregistrare video, oferind o solutie accesibila cu optiuni cat mai flexibile. Rezolutia maxima de inregistrare este de?1080N. ROV1B16?are o capacitate de stocare a datelor de pana la?6 TB?utilizand un HDD de tip SATA?(nu este inclus) si ofera modalitatea de backup prin USB 2.0 sau direct prin intermediul retelei de internet.? Puteti accesa camerele live de oriunde ati fi, prin simpla conectare a smartphone-ului (Android, iPhone, iPad).

H.265+/H.265 dual-stream video compression
> Supports Full-channel AI-Coding
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 18 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps Incoming Bandwidth
> Long transmission distance over coax cable
> Up to 8 channels video stream ( analog channel ) SMD Plus



Main Processor Embedded?processor
Operating System Embedded linux
SMD Plus
Performance 8 channels
AI Search Search by target classification (Human, Vehicle)
Video and Audio
Analog Camera Input 16 channels, BNC
HDCVI Camera 1080p@ 25/30 fps, 720p@ 25/30 fps
AHD Camera 1080p@ 25/30 fps, 720p@ 25/30 fps
TVI Camera 1080p@ 25/30 fps, 720p@ 25/30 fps
IP Camera Input 16+2 channels, each channel up to 6MP
Audio In/Out 1/1, RCA
Two-way Talk Reuse audio in/out, RCA
Video Compression AI Coding/H.265+/H.265/H.264+/H.264
Resolution 1080N; 720p; 960H; D1; HD1; BCIF; CIF; QCIF
Record Rate Main Stream:

the 1st channel 1080N/720p (1 fps?25/30 fps), others 1080N/720p (1 fps?15 fps); 960H/D1/HD1/BCIF/CIF/QCIF (1 fps?25/30 fps)

Sub stream:

CIF/QCIF (1 fps?7 fps)

Video Bit Rate 32 kbps?4096 kbps per channel
Record Mode Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop
Record Interval 1 min?60 min (default: 60 min), Pre-record: 1 sec?30 sec, Post-record: 10 sec?300 sec
Audio Compression G.711A; G.711U; PCM
Audio Sample Rate 8 KHz, 16 bit per channel
Audio Bit Rate 64 kbps per channel
Interface 1 HDMI; 1 VGA
Resolution 1920 ? 1080, 1280 ? 1024, 1280 ? 720
Multi-screen Display When IP extension mode not enabled:?1/4/8/9/16

When IP extension mode enabled:?1/4/8/9/16

OSD Camera title; Time; Video loss; Camera lock; Motion detection; Recording
Interface 1 RJ-45 Port (100 MB)
Network Function HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access 128 users
Smart Phone iPhone; iPad; Android
Interoperability ONVIF 16.12, CGI Conformant
Video Detection and Alarm
Trigger Events Recording; PTZ; Tour; Video Push; Email; FTP; Snapshot; Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 ? 18), Video Loss, Tampering and Diagnosis
Alarm input N/A
Relay Output N/A
Playback and Backup
Playback 1/4/9/16
Search Mode Time/Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom
Backup Mode USB Device/Network
Internal HDD 1 SATA port, up to 6 TB capacity
Auxiliary Interface
USB 2 USB ports (USB 2.0)
RS232 N/A
RS485 N/A
Power Supply DC 12V/2A
Power Consumption

(Without HDD)

< 10W
Dimensions Compact 1U, 260.0 mm ? 231.4 mm ? 47.6 mm

(10.24” ? 9.11” ? 1.87”)

Net Weight

(without HDD)

0.89 kg (1.96 lb)
Gross Weight 1.42 kg (3.13 lb)
Installation Desktop installation
Operating Conditions -10?C to +45?C (+14?F to +113?F), 10%?90% (RH)
Storage Conditions -20?C to +70?C (-4?F to +158?F), 0%?90% (RH)
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS; Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024

UL: UL 60950-1


Fisa tehnica
